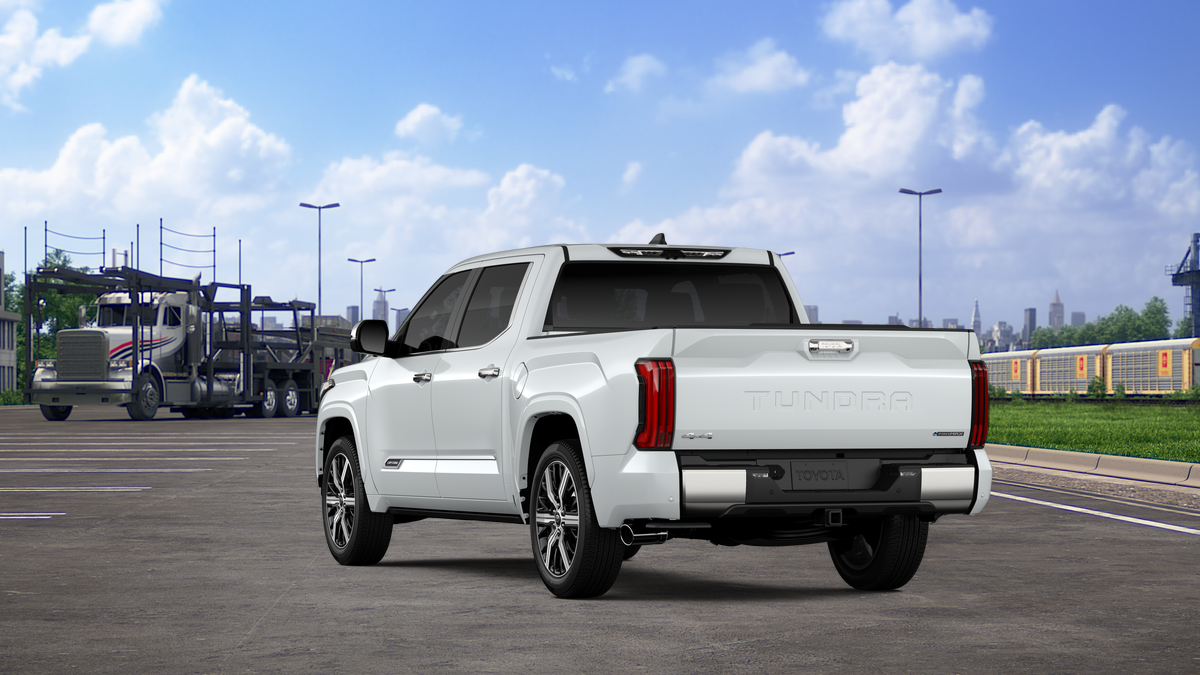

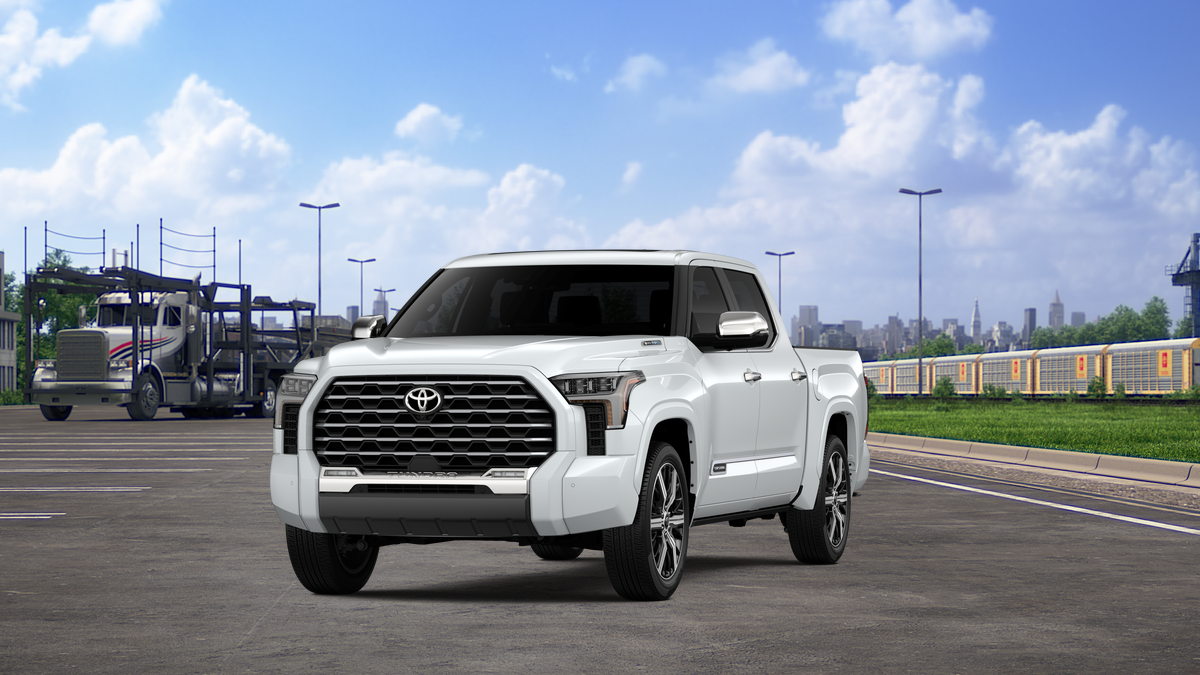

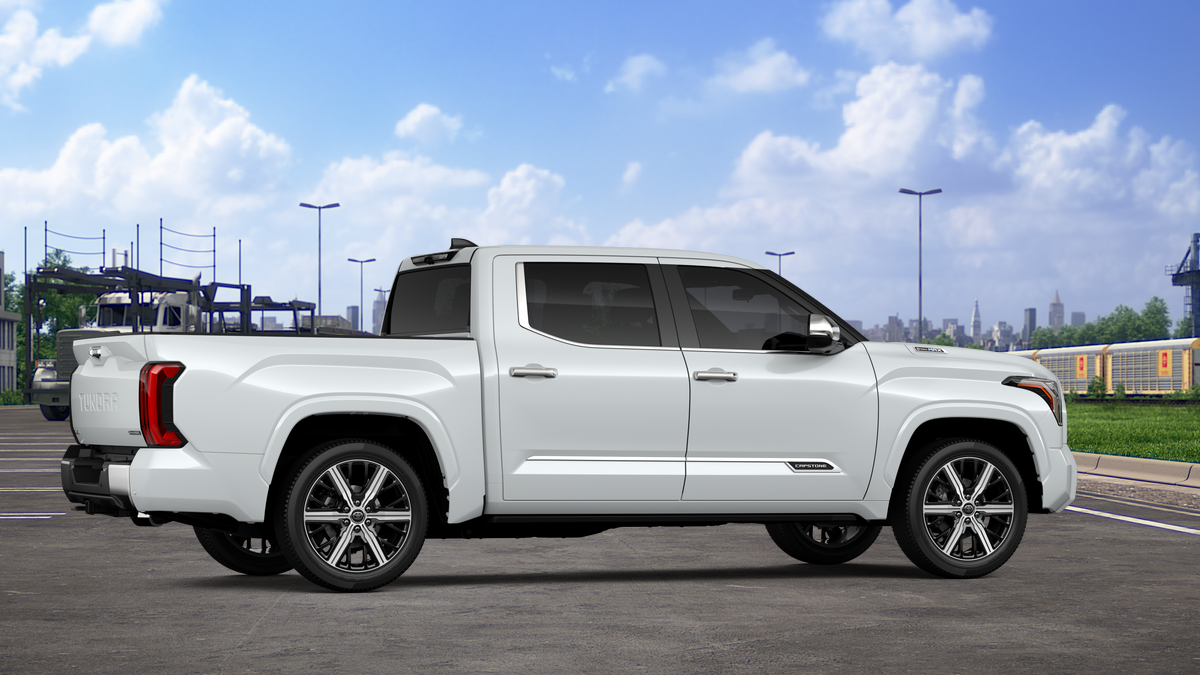

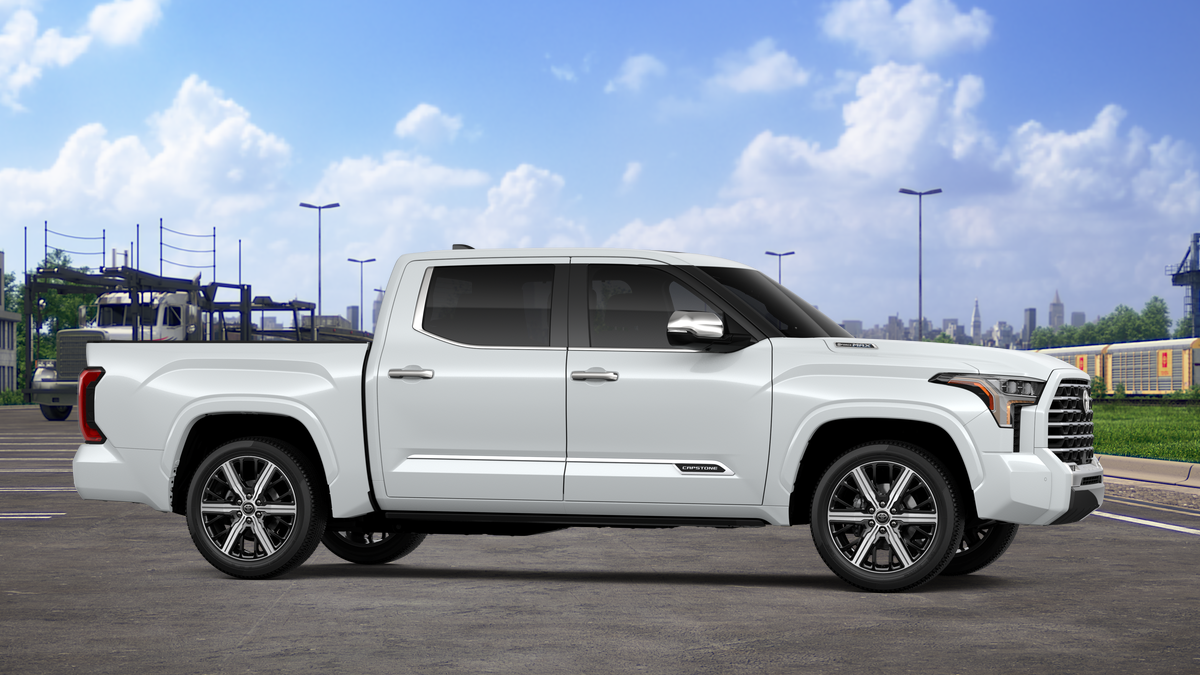

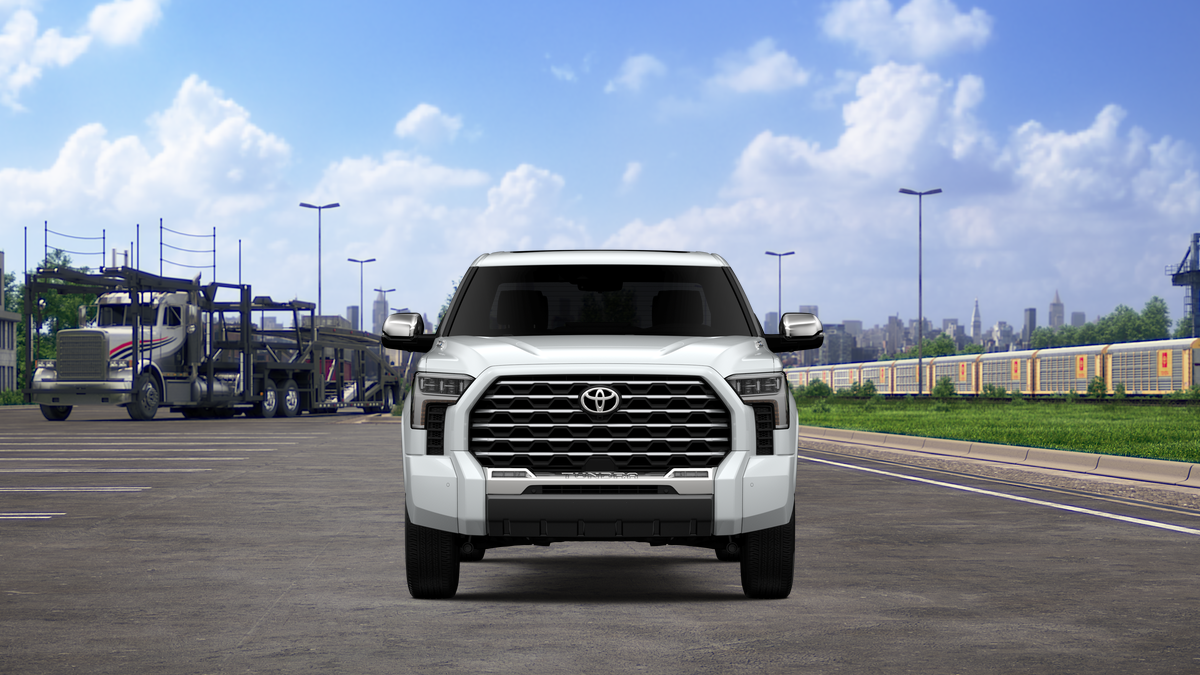

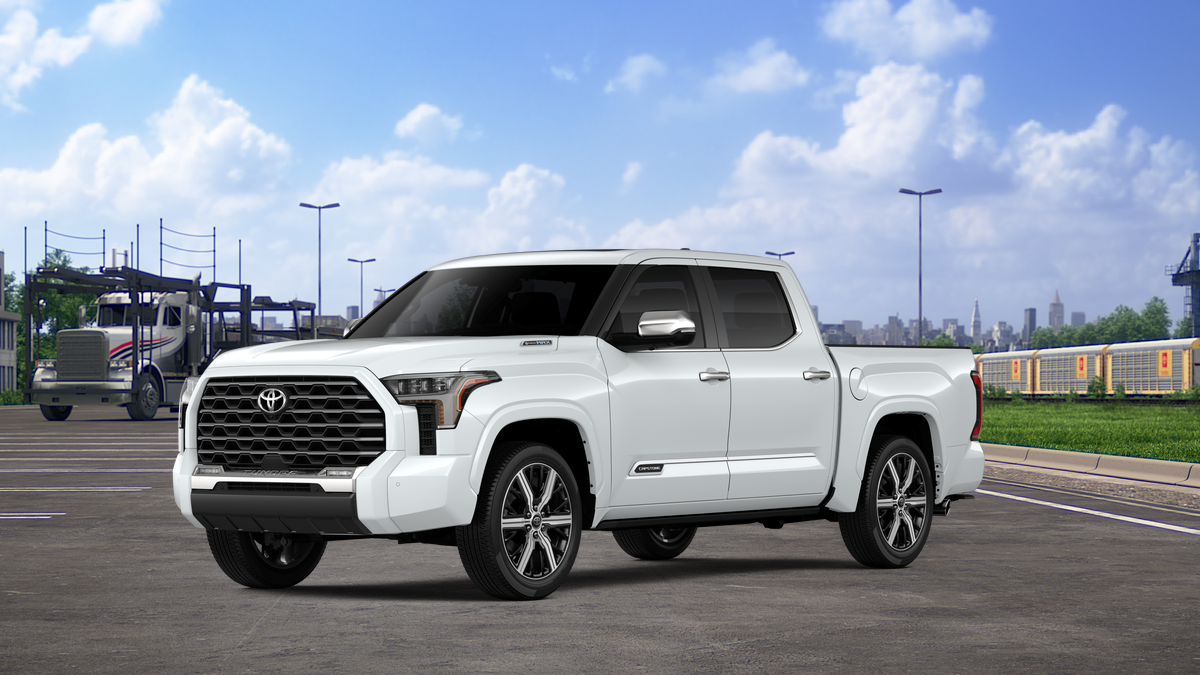

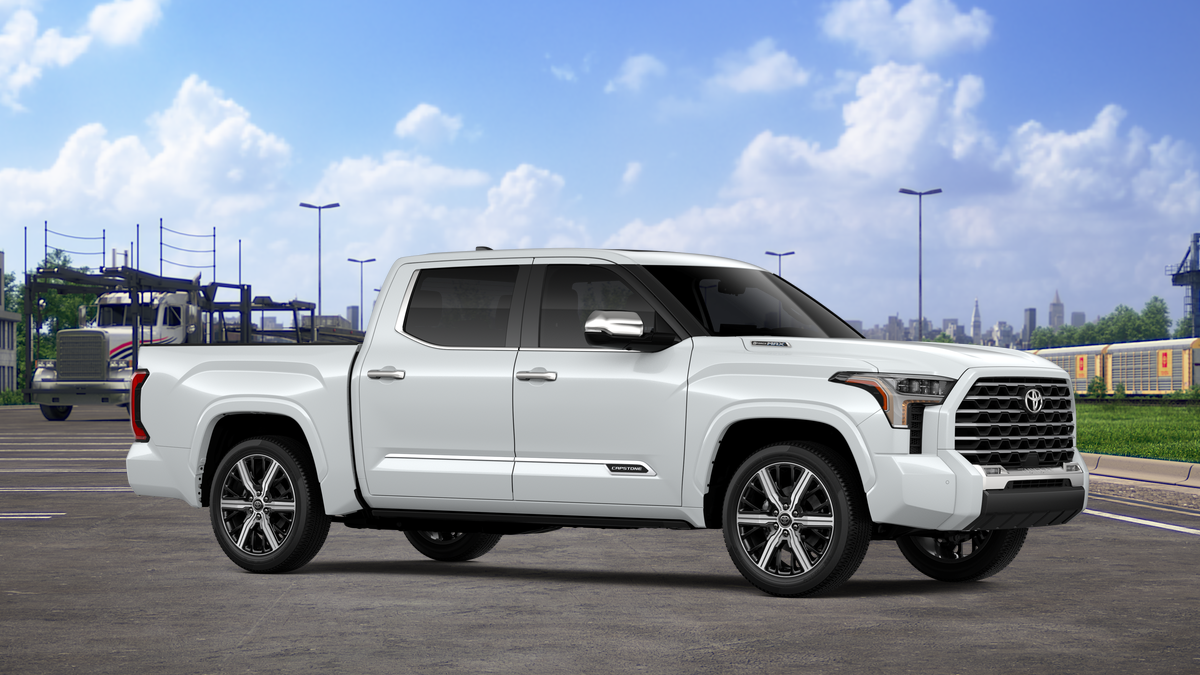

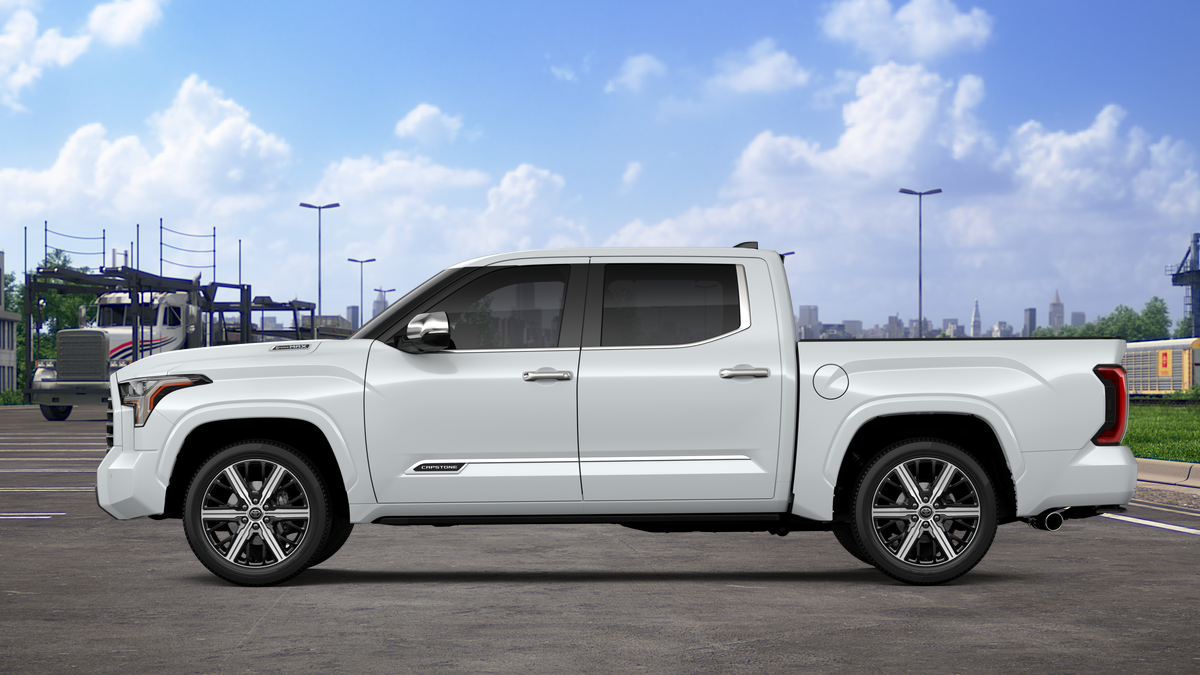

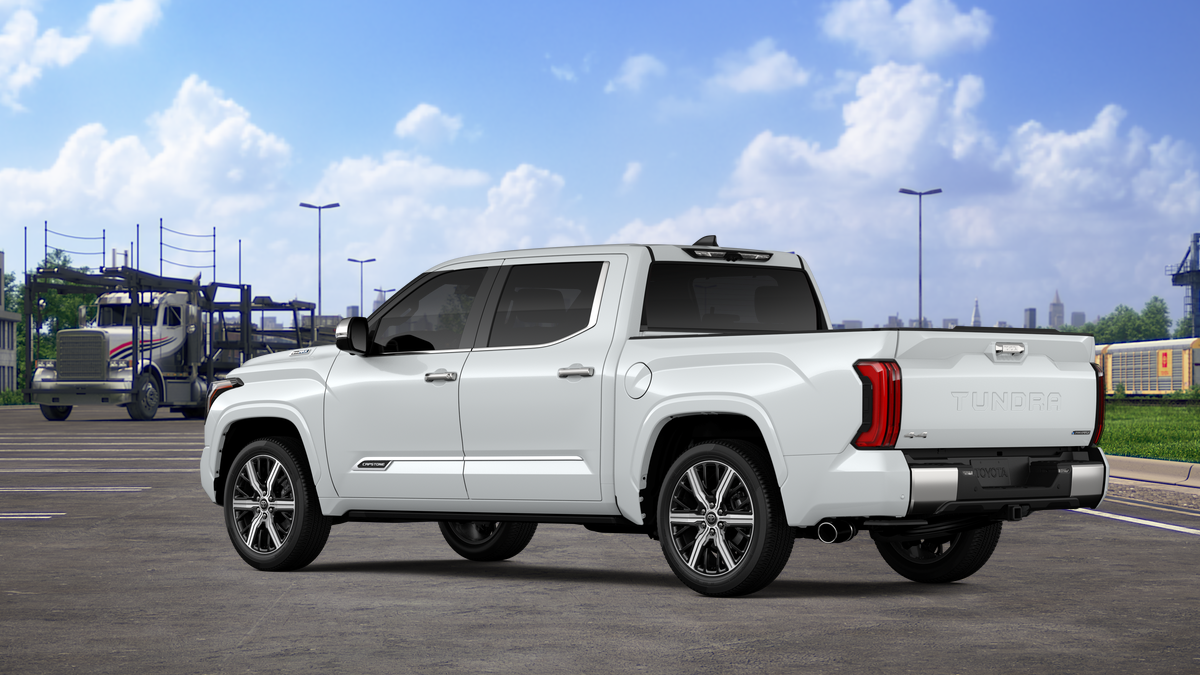

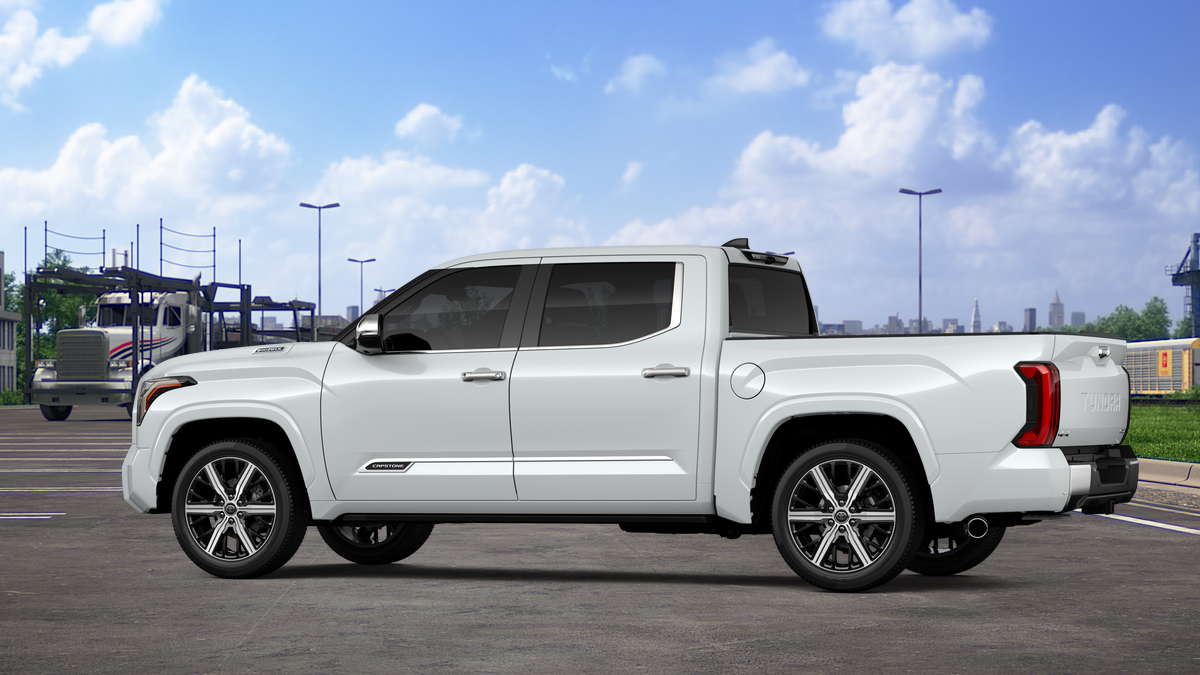

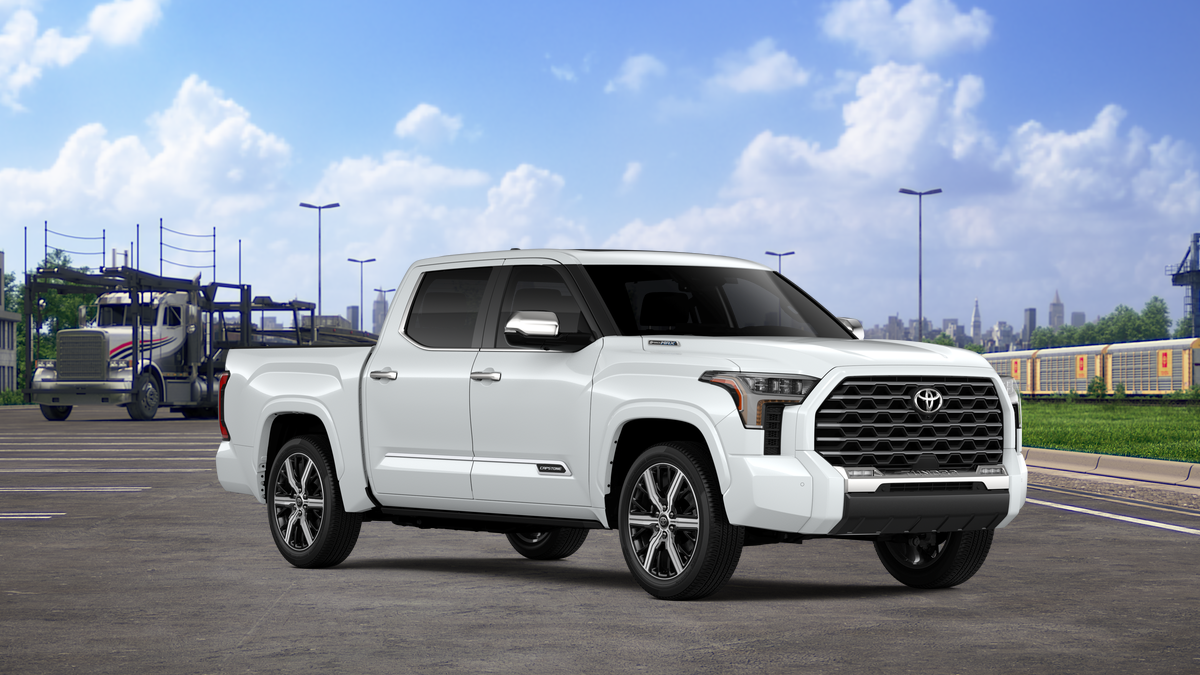

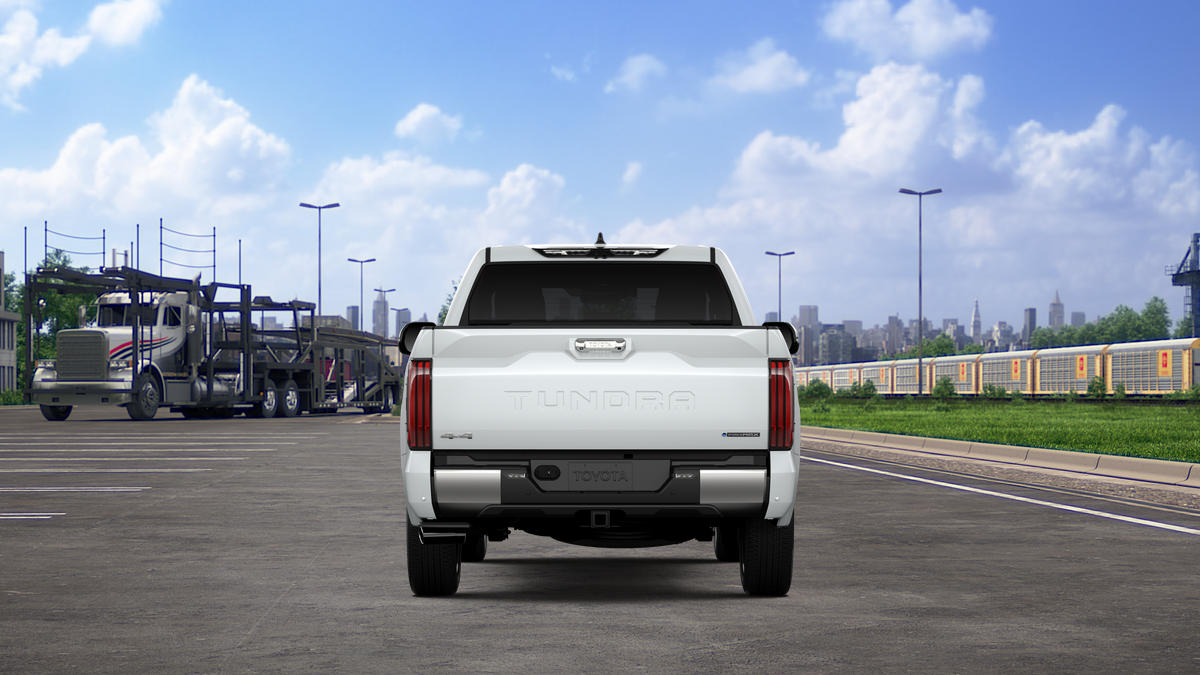

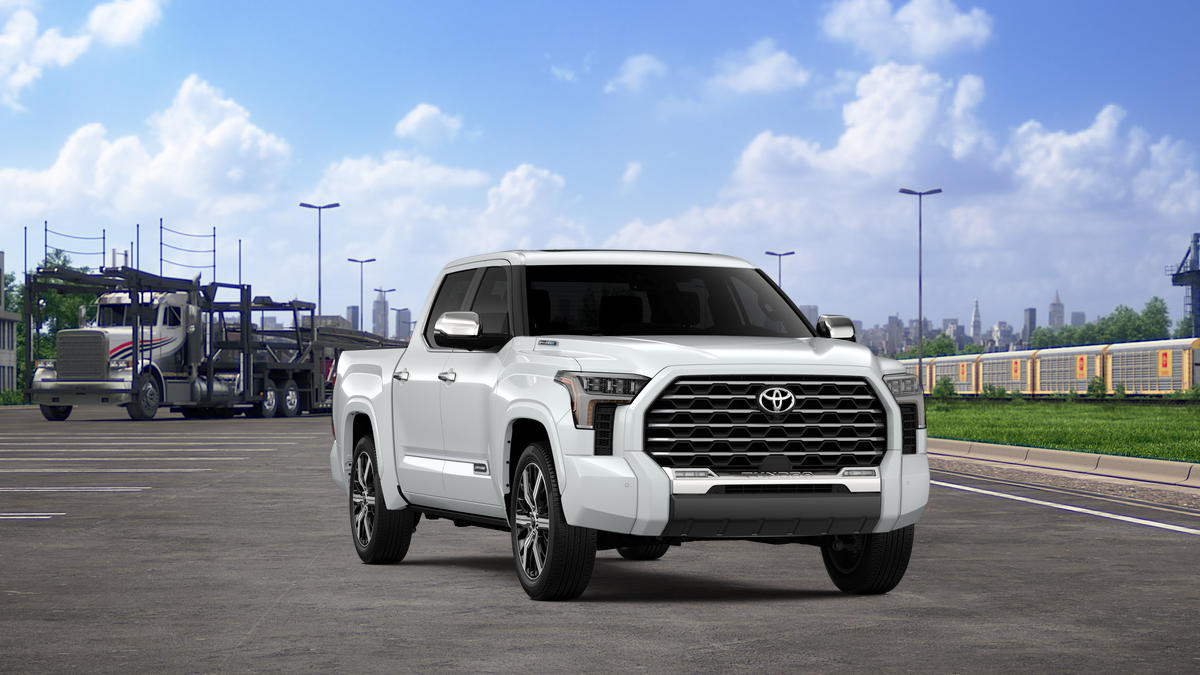

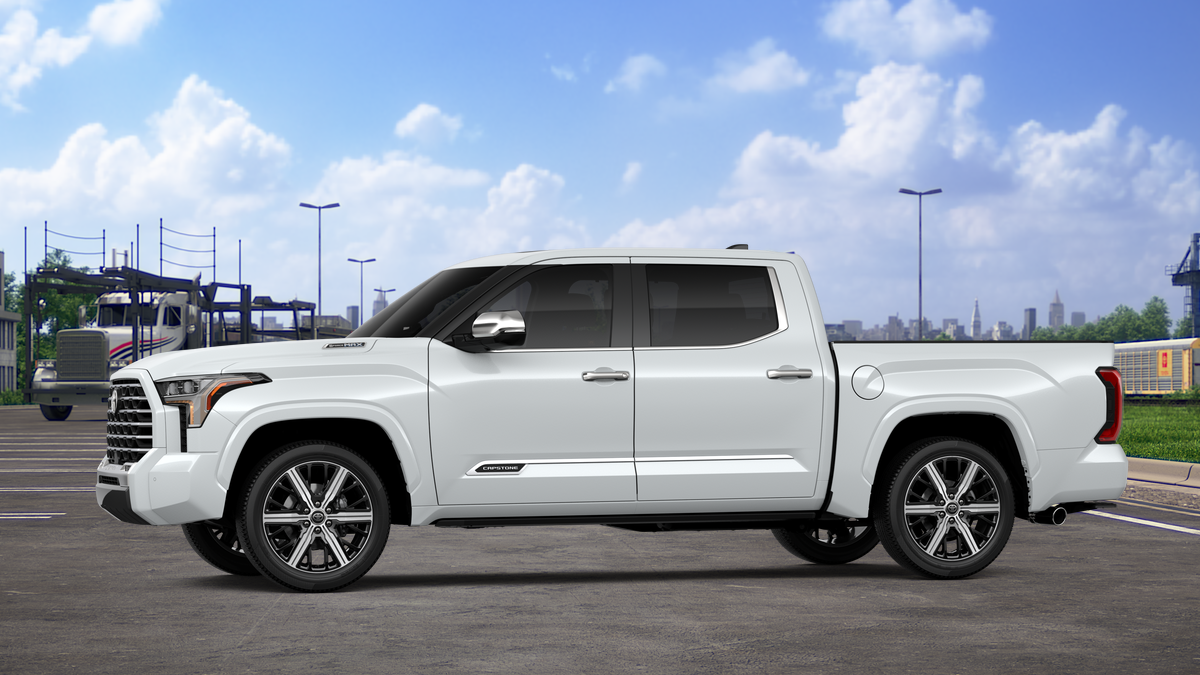

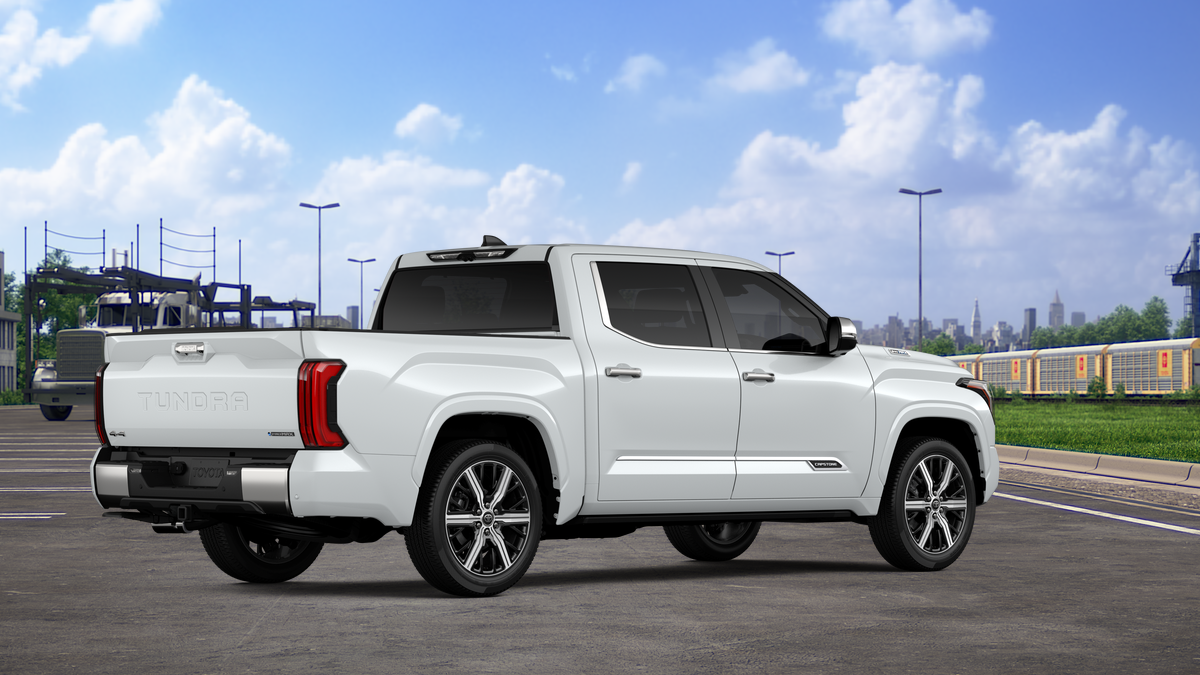

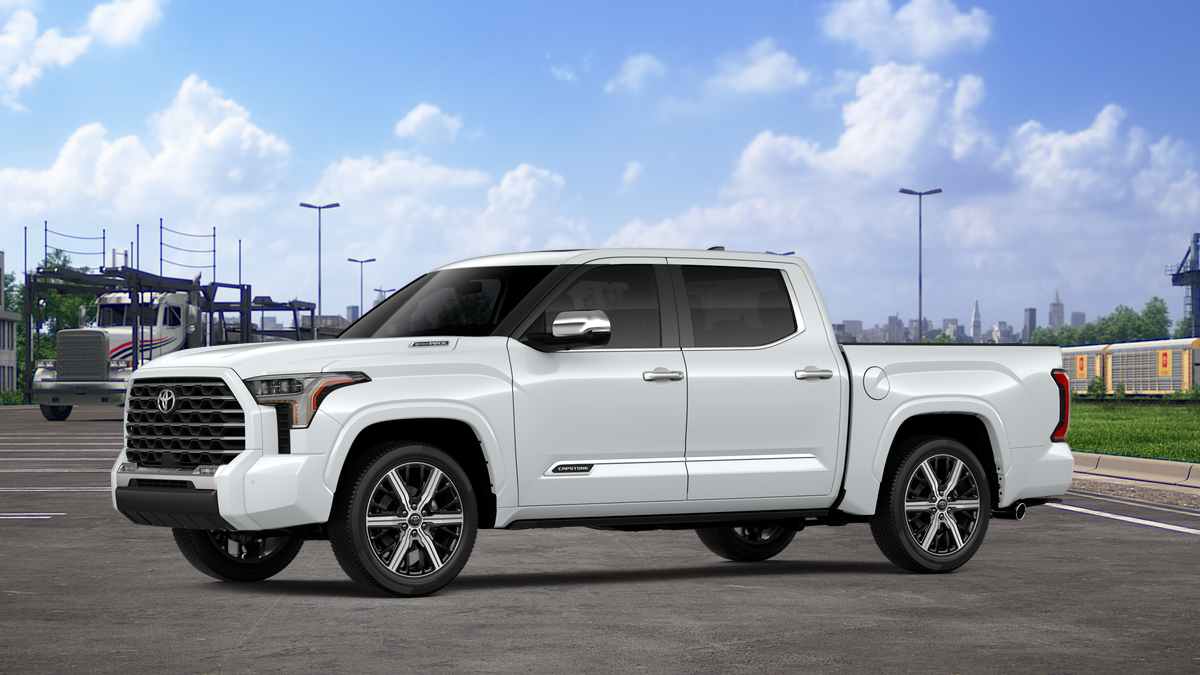

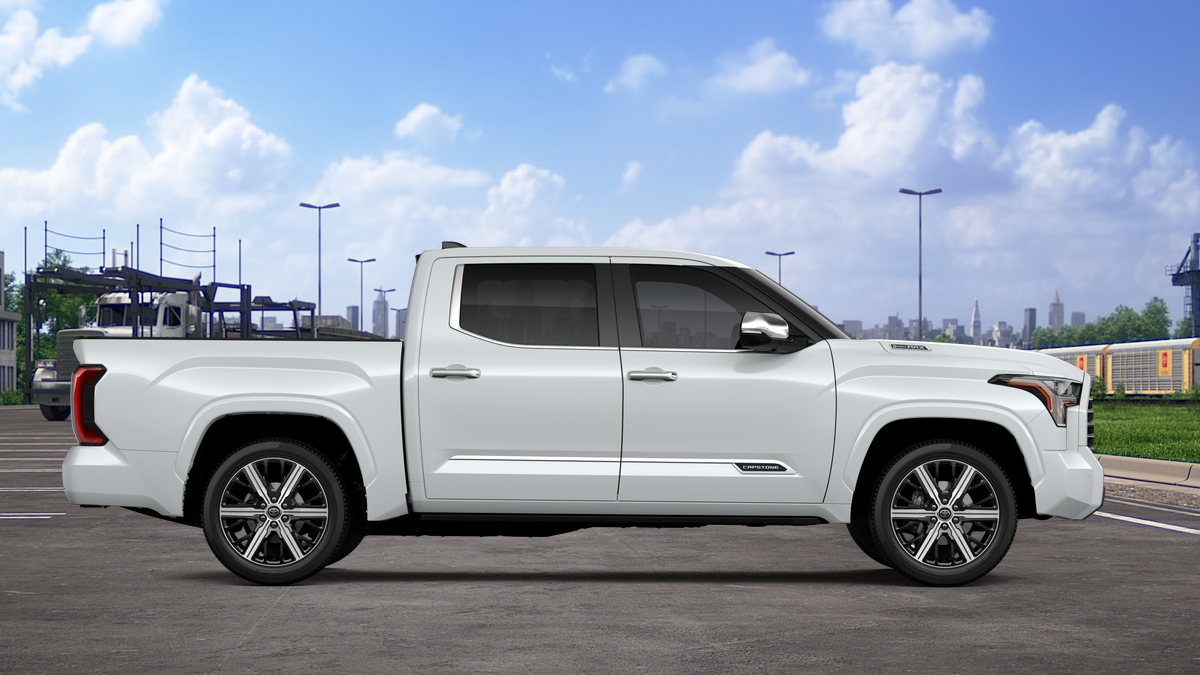

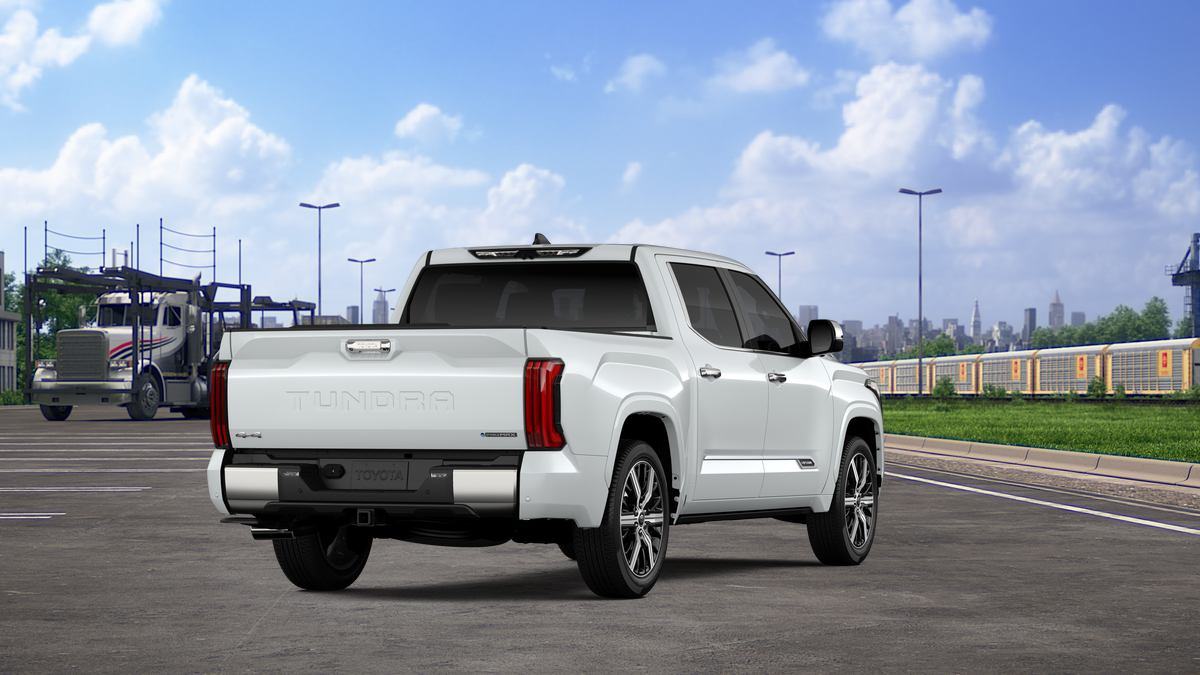

New 2026 Toyota Tundra i-FORCE MAX Capstone CrewMax 5.5-Ft.
4x4
Vehicle Summary
-
Wind Chill Pearl
-
Shale Premium Textured Leather-trimmed
-
VIN 5TFVC5DBXTX145693
-
Stock # T43674
In Transit -
Condition New
-
Exterior Wind Chill Pearl
-

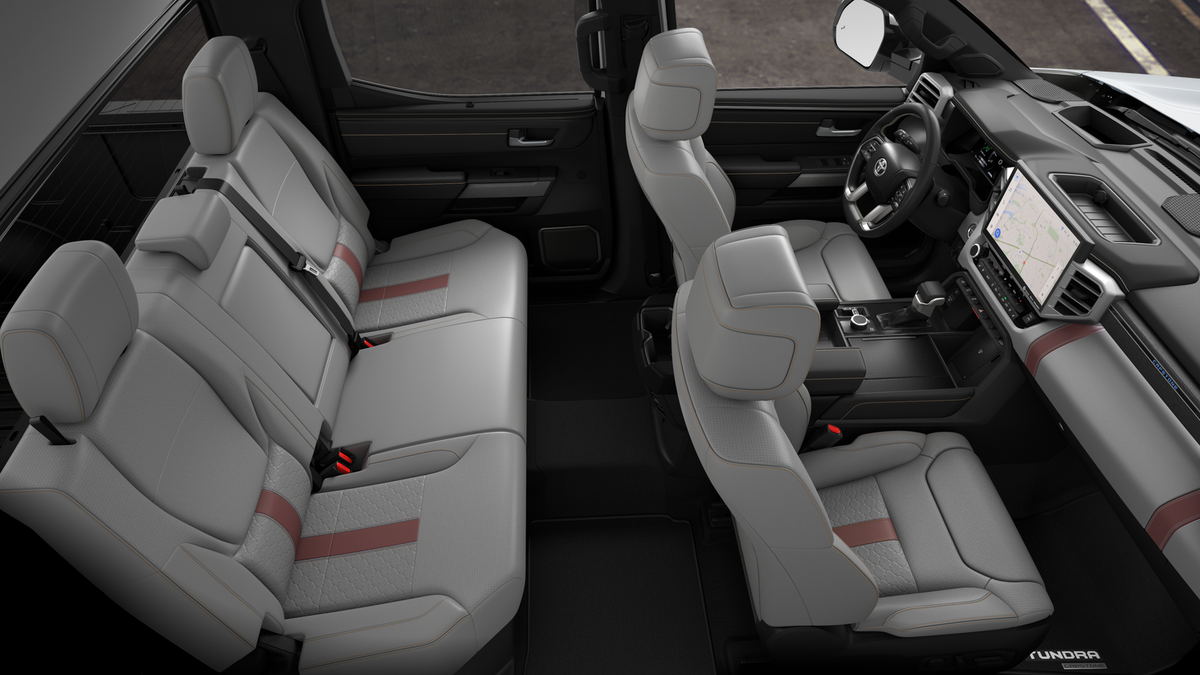

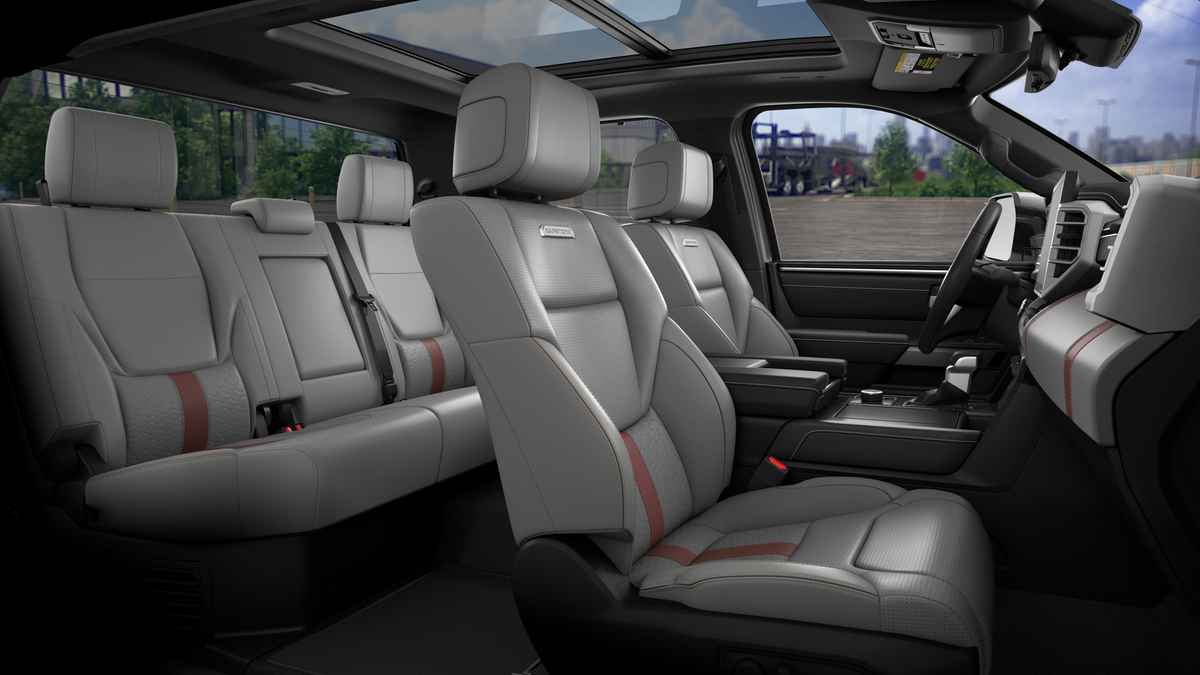

Interior Shale Premium Textured Leather-trimmed
-
Engine i-FORCE MAX V6 Hybrid Engine
-
Fuel Type Hybrid
-
Drivetrain 4x4
-
Transmission 10-Speed Electronically Controlled automatic Transmission with intelligence (ECT-i) and sequential shift mode
-
Location Toyota of Naperville
ToyotaCare is a no cost maintenance plan with 24-hour roadside assistance. The ToyotaCare plan covers normal factory scheduled maintenance for 2 years or 25,000 miles, whichever comes first. 24-hour roadside assistance is also included for 2 years and unlimited miles.
Toyota Safety Sense™ (TSS) is a bundle of active safety features included on many new Toyota vehicles at no additional cost. These innovative features were designed to help protect you and your passengers from harm.
MPG FUEL ECONOMY
CITY
HWY
AVG
Performance
HP
Key Features
Collision Avoidance
Lane Departure Warning
Lane Keep Assist
Adaptive Cruise Control
Cruise Control
Blind Spot Monitor
Rear Cross Traffic Alert
Parking Assist
Side-Impact Air Bags
Alloy Wheels
Tow Package
Homelink
Remote Cargo Access
Keyless Entry
Push Start
Panoramic Moonroof
Backup Camera
Navigation System
Automatic Climate Control
Premium Audio
Fog Lights
Technology Package
Vehicle Packages
Door Edge Guards: Stainless Steel
• Thermoplastic-coated stainless steel is precisely matched to the exterior finish
50 State Emissions
Spray-On Bedliner
• New, Toyota-exclusive softer material to keep items from sliding in the bed
• Toyota quality standards assure uniform thickness and a consistent texture
• Textured surface is designed to prevent cargo from sliding
• No lost cargo space, minimal added weight
• Features a Tundra logo
• Proprietary application method helps create a straight and crisp edge
• Fully warranted; repairs completed quickly and easily at a Toyota dealership
PVM + BSM Tow Mirrors
Load-Leveling Rear Height Control Air Suspension
Premium Paint
Tow Tech Package With Wireless Trailer Camera System
- Exterior antenna and wireless trailer camera
All-Weather Floor Liners
• Liners feature channels to better hold moisture
Hard Tri-Fold Tonneau Cover
• Self-latching system allows for easy-cover operation and removal
• Advanced seal-and-channel system has drain hoses at the cab-end helping to keep water out of the bed
• Innovative mounting system allowing for full access to bed rails
•Uses Deck Rail System for installation and is weather resistant
Toyota of Naperville
Vehicle Features
-

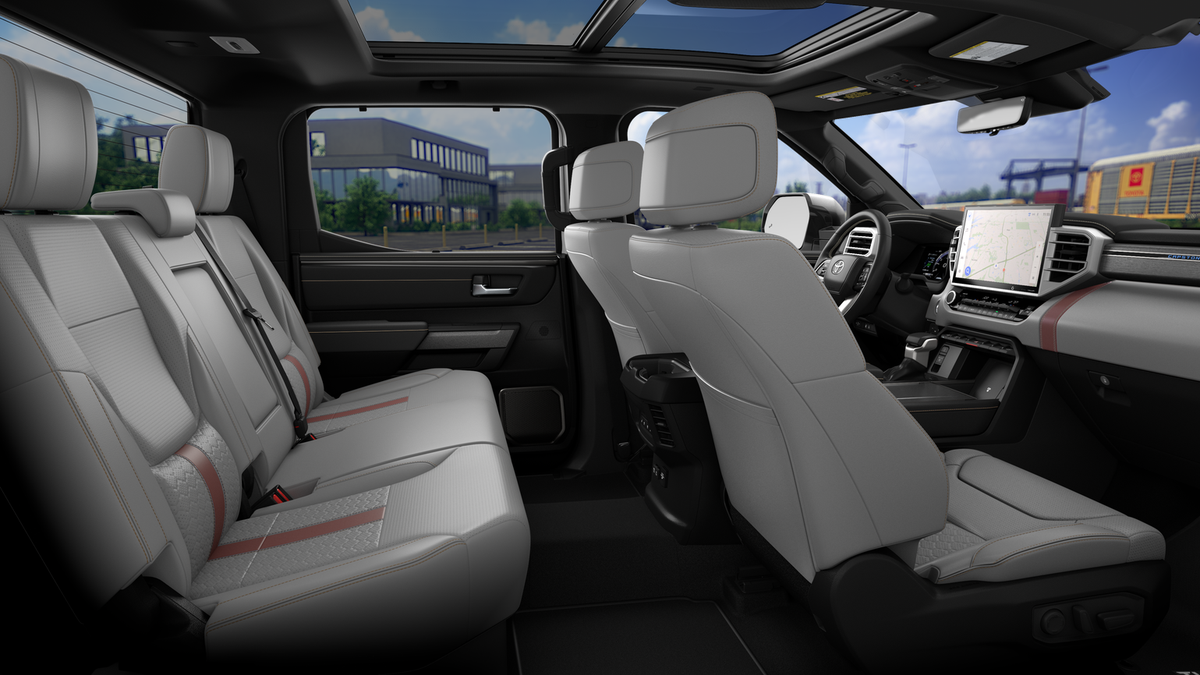

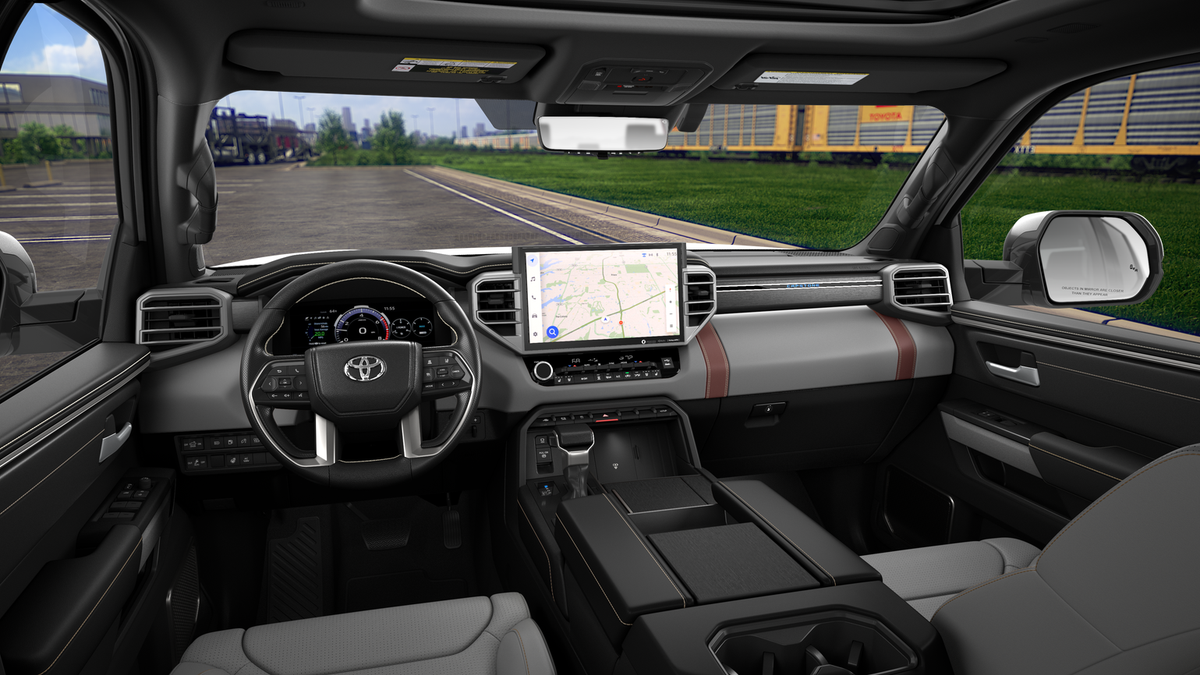

Interior
- Digital display auto-dimming rearview mirror with compass and HomeLink® universal transceiver
- Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
- Power tilt/slide panoramic roof with power sunshade
- Power vertical rear window with defogger and privacy glass
- Acoustic laminated windshield and side windows
- Power windows with one-touch auto up/down and jam protection
- Rear-door sunshades
- Front and rear LED maplights
- Illuminated center console storage bin and glove box
- Instrument panel and door ambient lighting, illuminated driver and passenger footwells, and front- and rear-door LED pocket lights
- Dark-gray American walnut wood-grain interior trim with backlit "CAPSTONE" instrument panel badge and metal speaker grilles
- Soft-touch instrument panel, center console and door surfaces
- Leather-wrapped shift knob
- Backup camera with projected path
- Panoramic View Monitor (PVM) with cameras
- Drive Mode Select (DMS) switch and dial
- Qi-compatible wireless smartphone charging
- Rear-seat air vents
- Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
- Front 12V auxiliary power outlet
- 120V/400W rear-seat AC power outlet
- Overhead console with rear window control, sunglasses storage and Safety Connect®
- Electronic locking fuel door
- Front and rear assist grips
- 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages
-
Exterior
- 22-in. dark chrome and machined-finish alloy wheels
- Front door handles with touch-sensor lock/unlock feature
- Premium LED headlights with chrome trim, LED Daytime Running Lights (DRL), sequential turn signals, auto on/off feature, and automatic leveling adjustment
- LED fog lights
- Premium LED taillights with sequential turn signals
- Dark-chrome-accented mesh grille with color-keyed surround
- Rain-sensing washer-linked variable intermittent windshield wipers
- Heated power outside mirrors with turn signal and blind spot warning indicators, and power-folding and reverse tilt-down features; auto anti-glare driver's-side mirror only
- 5.5-ft. Short Bed
- Aluminum-reinforced composite bed construction
- 120V/400W bed-mounted AC power outlet and LED bed lights
- Power tailgate-release switch located in taillight, key fob and dash with knee-lift assit
- "TUNDRA" stamped easy lower and lift tailgate
- LED center high-mount stop light (CHMSL) with integrated cargo lights
- LED Trailer Reverse Assist (TRA) light
- Gloss-black-painted A-pillar, except on Midnight Black Metallic and Blueprint
- i-FORCE MAX tailgate badge
- Chrome "CAPSTONE" door badge and garnish, door handles, window molding and mirror caps; color-keyed tailgate spoiler and overfenders
- "i-FORCE MAX" hood badge
- "4x4" tailgate badge
- Chrome single exhaust tip
- Power running boards and BedStep®
-
Mechanical
- Ignition System: Conventional 12V starter
- Fuel System: D-4ST direct-injection and port-injection fuel system
- Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
- Off-Road: Engine and body undercovers
- Valvetrain: 24-valve DOHC aluminum cylinder heads with Dual Variable Valve Timing with intelligence (VVT-i); 3445 c.c. aluminum engine block; 85.5 x 100 (mm.) bore x stroke; 10.4:1 compression ratio
- Exhaust System: Stainless steel exhaust system
- Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
- Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls
- Towing: Trailer Backup Guide system with Straight Path Assist (SPA)
- Towing: Trailer-Sway Control (TSC)
- Engine: i-FORCE MAX 3.4L Twin-Turbo V6 Hybrid; 437 hp @ 5200 rpm; 583 lb.-ft. @ 2400 rpm
- HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
- HV Electric Motor: Electric motor power: 48 hp (36 kW)
- HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
- HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
- Transmission: 10-speed Electronically Controlled automatic Transmission with intelligence (ECT-i), sequential shift mode, and uphill/downhill shift logic
- Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD)
- Drive Modes: Eco, Normal and Sport driving modes
- Drive Modes: TOW/HAUL driving modes
- Body/Frame: Fully boxed high-strength steel ladder frame
- Body/Frame: Hydraulic cab mounts
- Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
- Body/Frame: Active aero front spoiler
- Body/Frame: Active grille shutters
- Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
-
Safety
- 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
- Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
- Front and Rear Parking Assist with Automatic Braking
- Eight total airbags, including driver and passenger side, knee and curtain airbags
- LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
- Child-protector rear door locks and power window lockout control
- Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
- Drive-Start Control (DSC)
- Hill Start Assist Control (HAC)
- Tire Pressure Monitor System (TPMS)
- Driver and front passenger headrests
Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
View Disclaimers
View Disclaimers
View Disclaimers
View Disclaimers
-
Factory Warranty
-
Basic warranty
36 month/36,000 miles
Powertrain warranty
60 month/60,000 miles
Maintenance warranty
24 month/25,000 miles
High voltage electrical system
96 month/100,000 miles
Traction battery warranty
120 month/150,000 miles
-
-
